Xerox AltaLink EIP configuration - Before installation of Dispatcher Paragon Embedded Terminal


SNMPv3

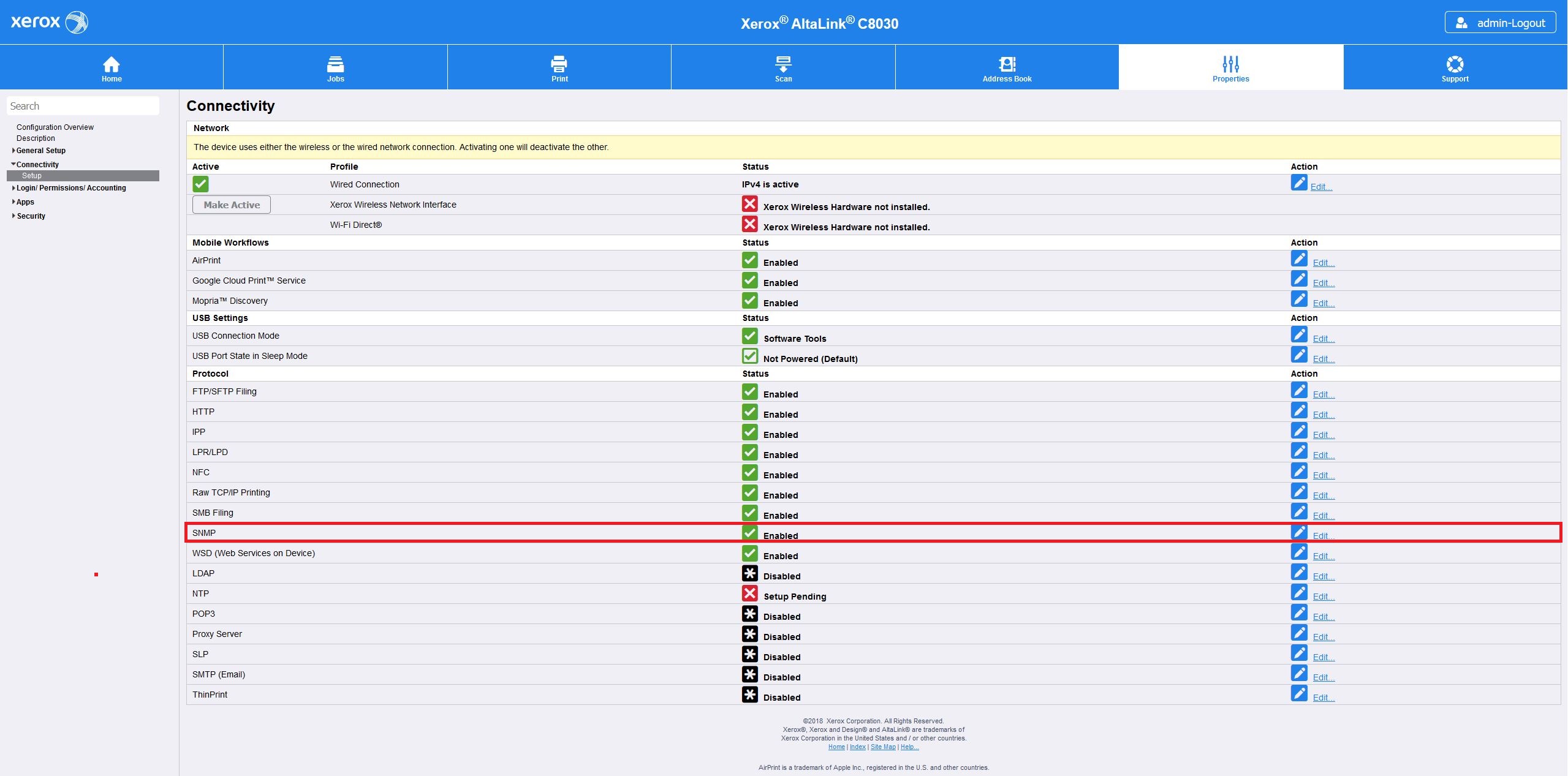

Go to Properties → Connectivity → Setup then edit SNMP from list of protocols.

images/download/attachments/284929592/snmp-version-1-modificationdate-1542805577423-api-v2.JPG

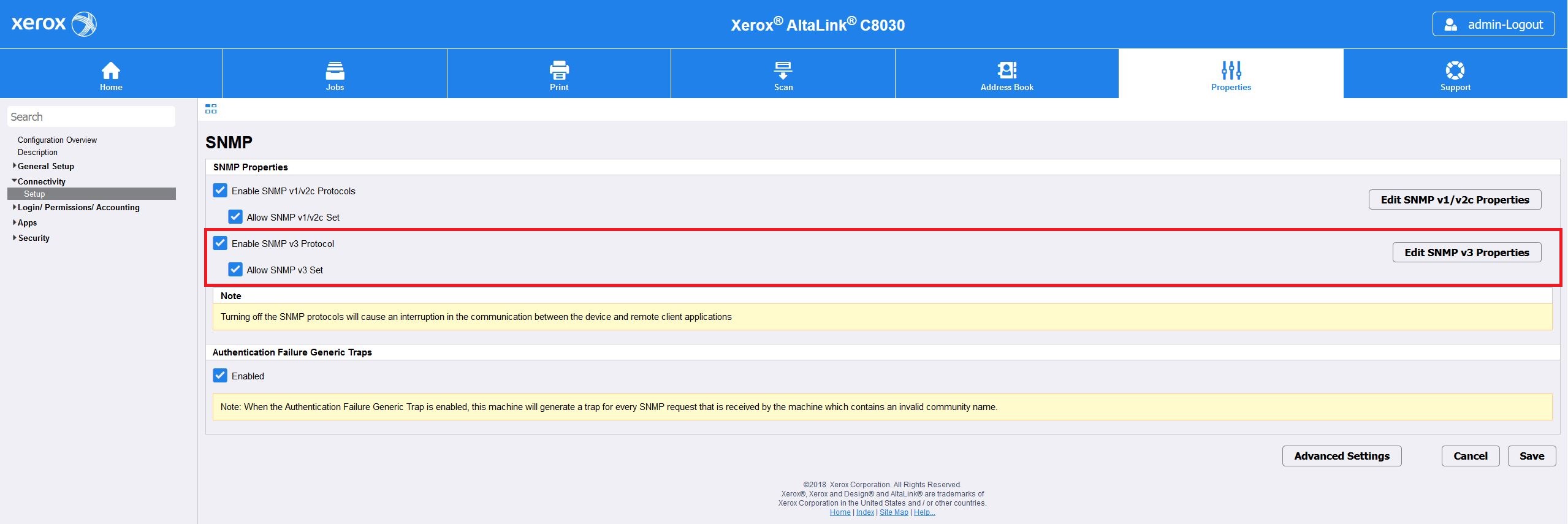

Enable SNMP v3 Protocol and allow SNMP v3 Set. Edit SNMP v3 Properties.

images/download/attachments/284929592/enable_snmp-version-1-modificationdate-1542805577747-api-v2.JPG

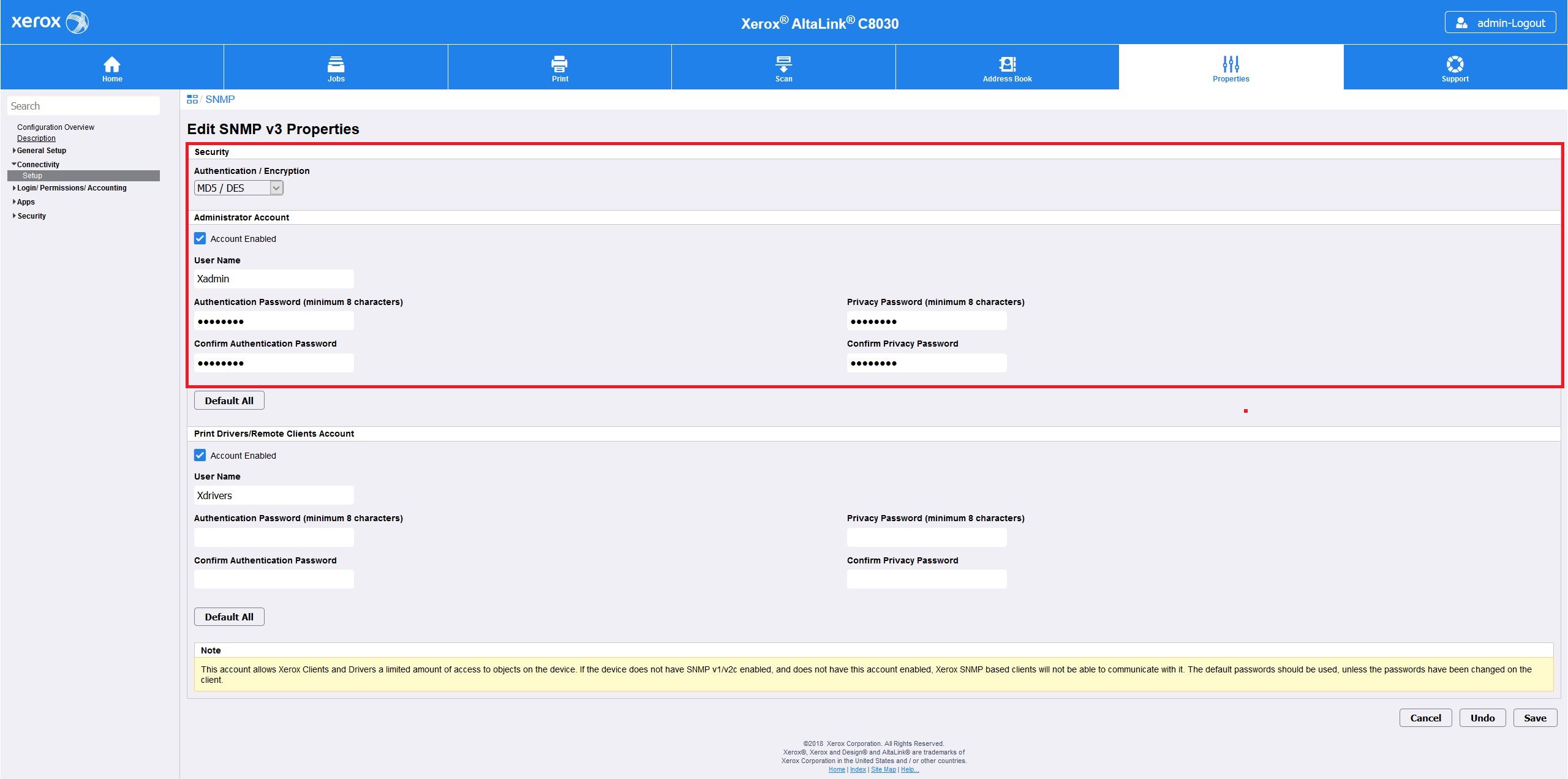

Choose Authentication/Encryption algorithm, enable Administrator Account and fill Authentication Password and Encryption password used in your organization.

images/download/attachments/284929592/snmp3_settings-version-1-modificationdate-1542805577847-api-v2.JPG

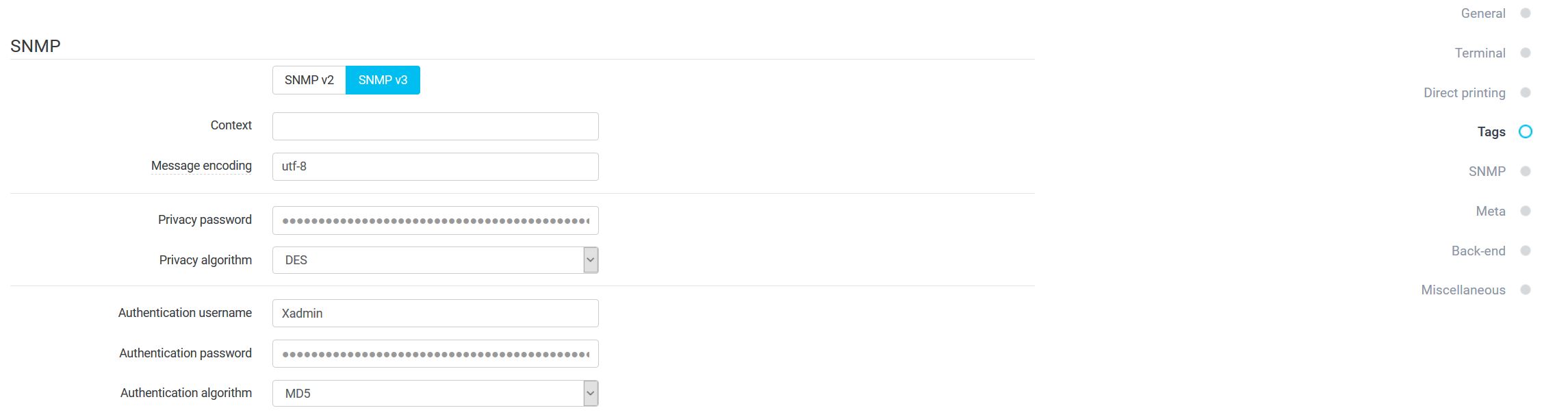

The same SNMP3 settings have to be used in device configuration in SafeQ.

images/download/attachments/284929592/safeq_snmp_settings-version-1-modificationdate-1542805577950-api-v2.JPG

Proceed with the MFD installation in SafeQ to complete the installation of Dispatcher Paragon Embedded Terminal. Check the installation status and installation steps.


If there are some warnings present during the installation, you will need to do some further settings based on the messages.

Necessary settings prior to use of Altalink devices for scanning with WebDAV

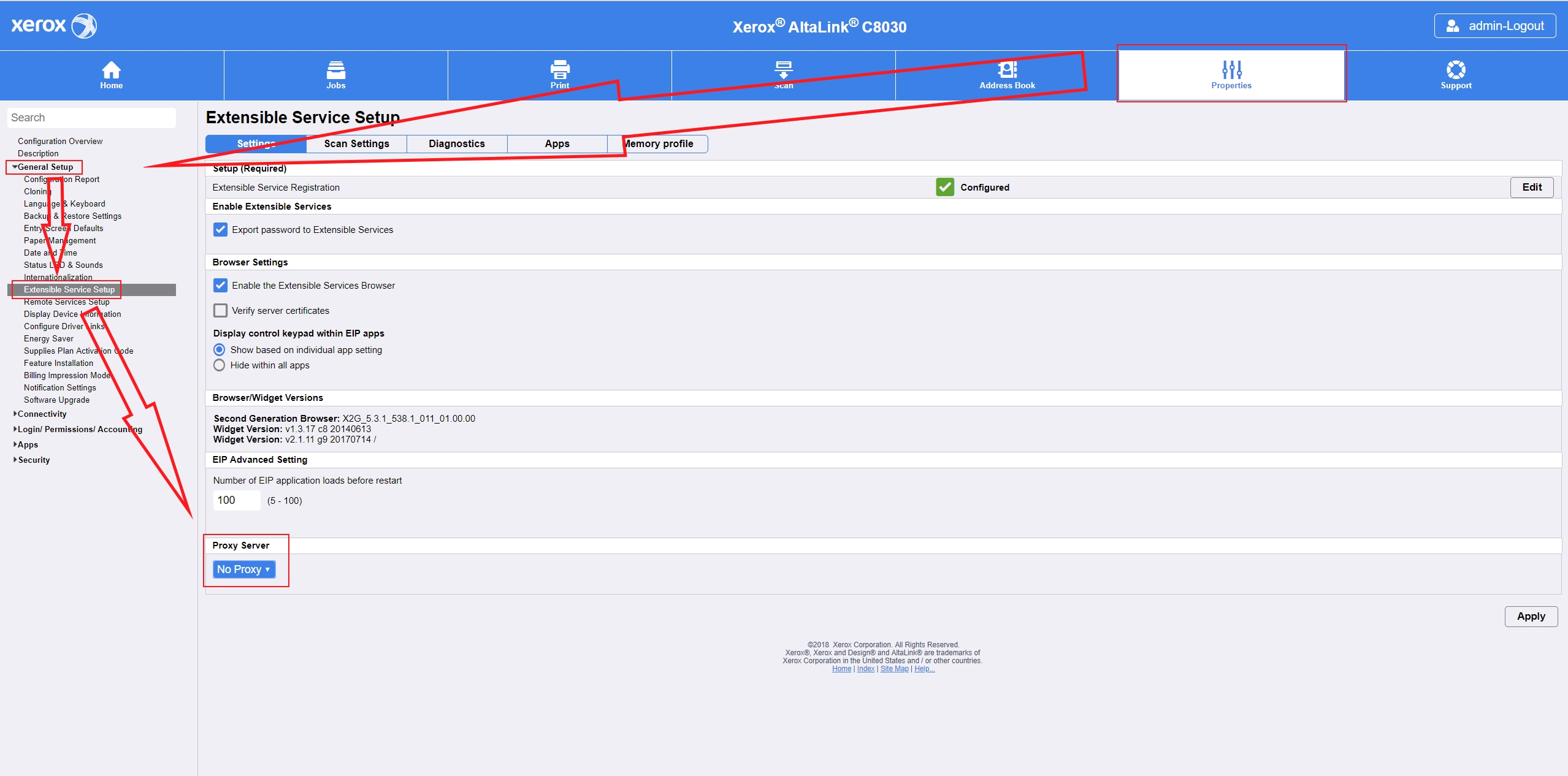

To be able to scan via WebDAV on Altalink devices you need to change following setting: MFD Properties menu > General setup > Extensible service setup > Proxy server set to "No proxy"

images/download/attachments/284929592/WebDAV_setting-version-1-modificationdate-1542805578167-api-v2.jpg

NTP setup

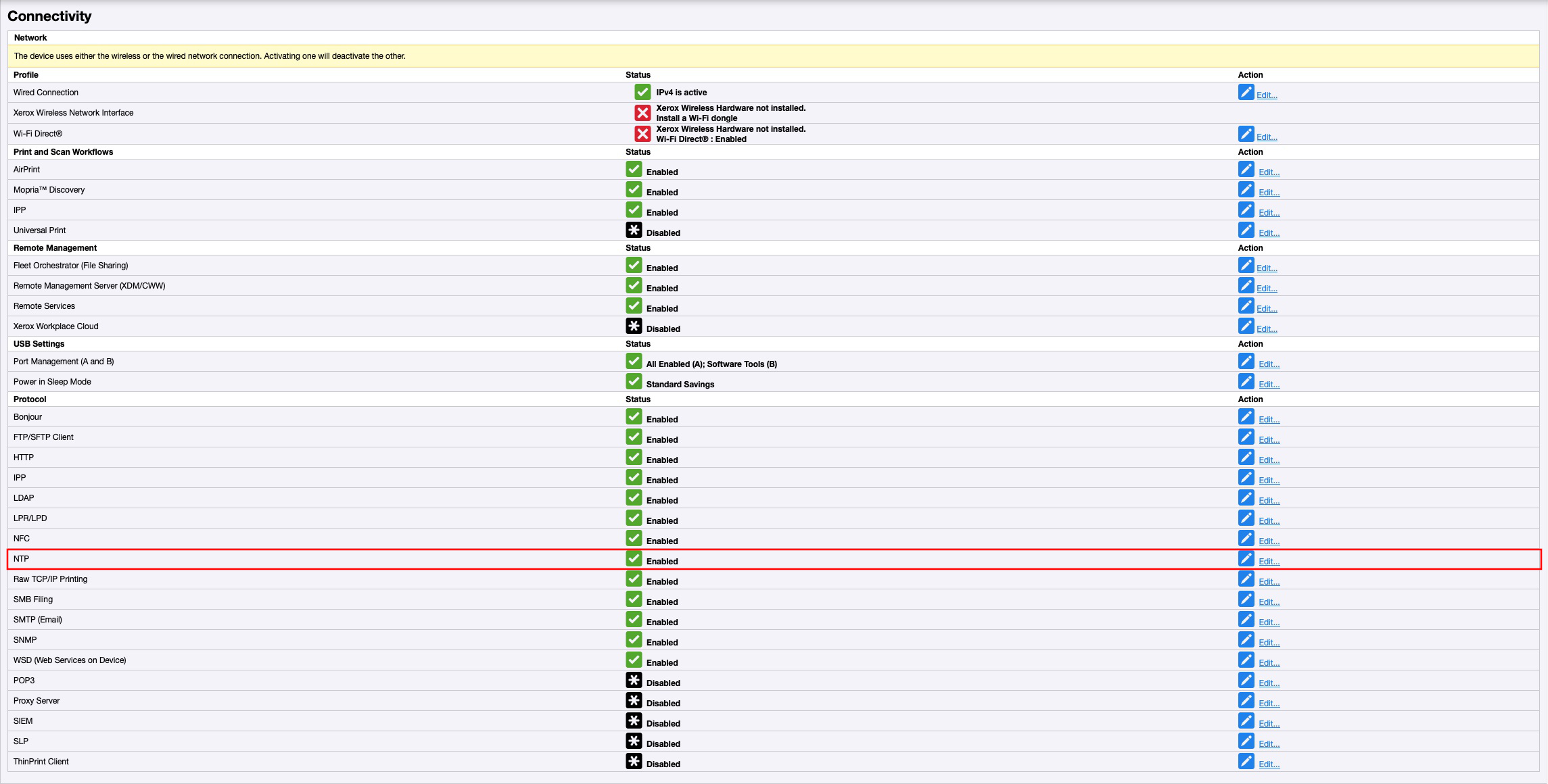

Go to Properties → Connectivity → Setup then edit NTP from the list of protocol.

images/download/attachments/284929592/ntp_01-version-1-modificationdate-1673270786890-api-v2.jpeg

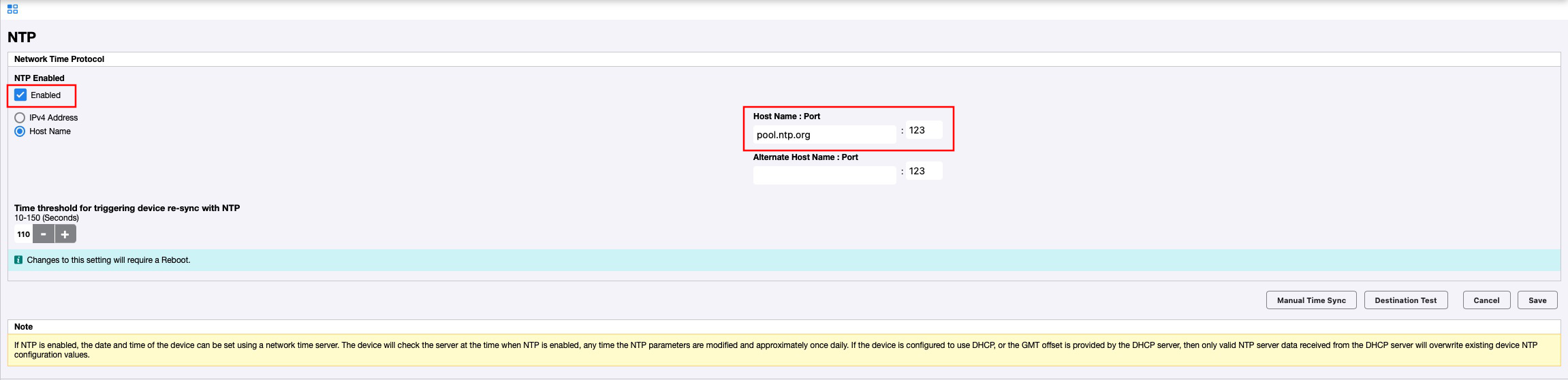

Enable NTP and configure hostname/IP address according to the selection.

images/download/attachments/284929592/ntp_02-version-1-modificationdate-1673270787100-api-v2.jpeg
