Complete the Before-You-Begin checklist

Before you begin installing the terminal, complete this checklist:

  1. If possible, register and acquire access to the Konica Minolta online help desk a day or two before you begin the installation.
  2. Obtain the Terminal Professional installation packages and a small Phillips screwdriver.

  3. Make sure Dispatcher Paragon Server is installed and running.

    Property startTerminalProfessionalLegacyServer has to be enabled.

  4. Write down the terminal's serial number (located on the back of the terminal).

  5. Make sure the Smart cable is the correct cable for the MFD you are connecting the terminal to.

    Refer to the MFD/cable part number compatibility list that Konica Minolta provided you or go to Hardware Compatibility List (HCL) and check the list there.

  6. If the cable you have is not correct, find the correct cable before you proceed. The cable may be among other Konica Minolta packages at the location where you are installing the terminal.
  7. Obtain the following information:
    1. The Dispatcher Paragon Server IP address
    2. Does the network support DHCP?
    3. If it does not support DHCP, obtain this additional information:
    4. Terminal IP address
    5. Netmask address
    6. Gateway IP address
    7. DNS server IP address
  8. Information about the MFD or printer:
    1. IP address
    2. Serial number
    3. Model number

Check package contents

Check to make sure you have the following items (included in several packages):

Main package:

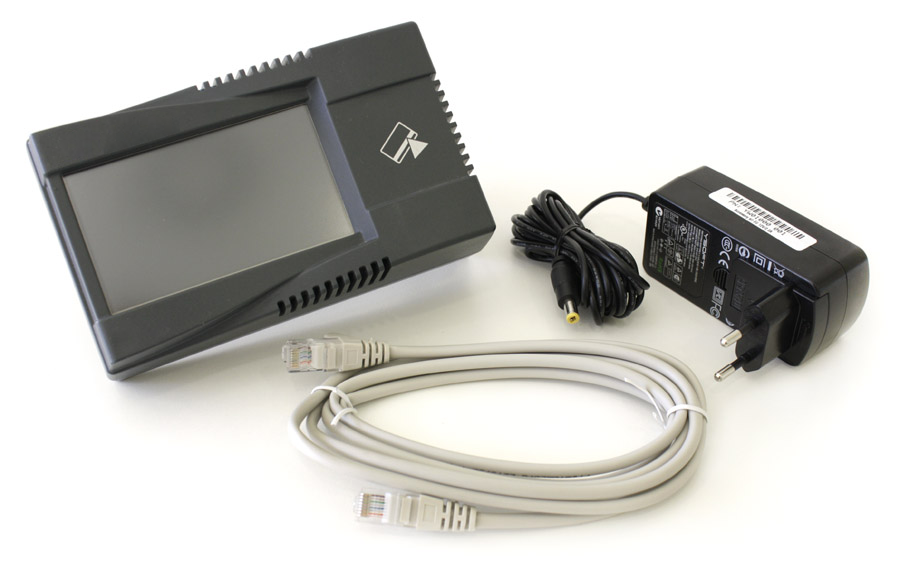

  • Terminal Professional
  • Ethernet cable
  • Power supply adapter

The package also includes clear plastic cable wrap for the Ethernet cable.

Accessory packages:

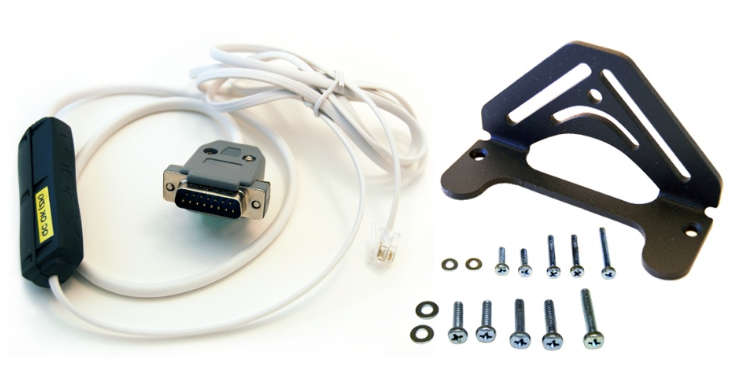

  • Smart cable
  • MFD Universal Mounting Kit (bracket, screws, washers)

The Smart cable for your MFD may be different from the one shown here.

Connect cables

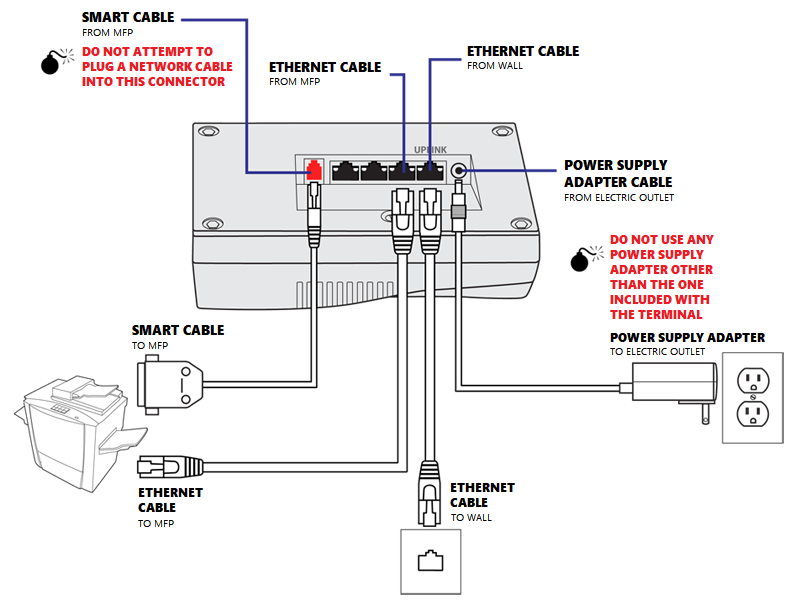

Connect cables in the order shown in this diagram.

You must connect the Smart cable before you connect the Power Supply Adapter cable.

The printer has to be connected to the network directly or by a switch in the Terminal Professional.

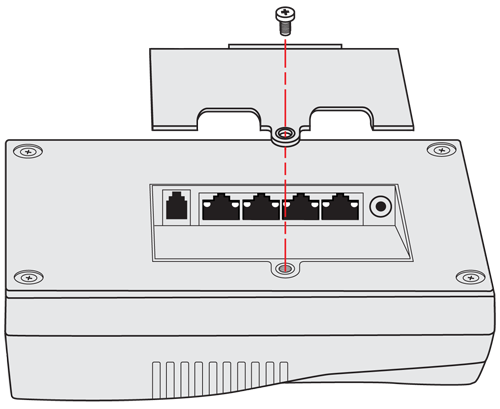

  1. On the back of the terminal, remove the cover and expose the connectors.
  2. Connect the cables as shown here:

Replace the back cover of the terminal

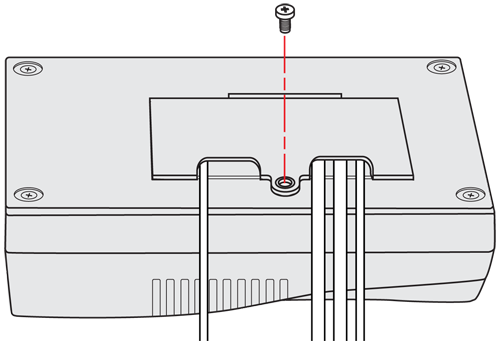

  1. Replace the terminal’s cover and tighten the screw.

Mount the terminal

 Depending on the type of bracket included with the terminal, mount the bracket to the MFP, to the wall, or to a nearby object such as a desk or table.

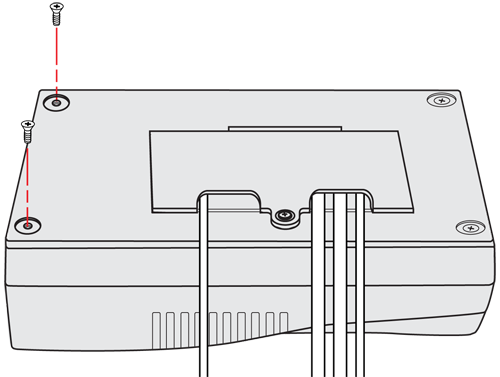

  1. Remove the two screws from the back of the terminal.

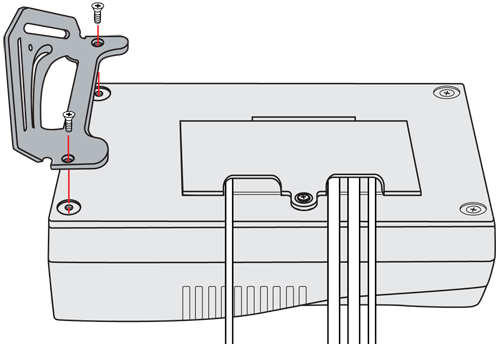

  2. Attach the mounting bracket to the terminal.
  3. If you have not already done so, write down the terminal’s serial number (located on the back of the terminal).
  4. Use the screws and washers included with the mounting bracket to mount the bracket and terminal onto the MFP.
  5. Cover all cables with the clear plastic wrap (included in the plastic bag with the cable). Start the wrap about 4 or 5 inches (10 to 12 cm) from the back of the terminal.

Verify installation

Before you verify installation:

If a user (with an associated card or PIN) has not been created in Dispatcher Paragon, create one now for testing purposes as follows:

  1. In the Dispatcher Paragon management interface, add a new user named "test".
  2. Assign a card and a PIN to the test user (for example, PIN1111).

If the terminal does not include a card reader:

  1. On the terminal’s PIN entry screen, enter 1111 (or whatever PIN you assigned to the test user); then touch OK.
  2. Check to make sure the MFP panel unlocks (that is, the panel lights up and comes on).

If the terminal includes a card reader:

  1. Touch the PIN button to display the PIN entry screen.
  2. Enter 1111 (or whatever PIN you assigned to the test user); then touch OK.
  3. Check to make sure the MFP panel unlocks (that is, the panel lights up and comes on).

If the MFP unlocks and the user is authenticated, installation is now complete.
