Compatible blocking cables

• YSQC0-008-0000 Smart Cable Kyocera SSR

• YSQC0-009-0000 Smart Cable Kyocera (4-pin) SSR - (TP)

• YSQC0-010-0000 Smart Cable Kyocera (Type 2) SSR - (TP)

Configuration of devices for blocking cables

Login to the service menu of the device. Consult service manual for device on how to access service menu of the device.

Use maintenance mode U204 to change the blocking type:

a) Key counter for most devices

b) Key card for older devices

Press Start to set the configuration, power off and power on the device.

Examples of blocking cable connection

3060i/3560i

YSQC0-009-0000 Smart Cable Kyocera (4-pin) SSR - (TP)

2500ci

YSQC0-009-0000 Smart Cable Kyocera (4-pin) SSR - (TP)

DCC 2930/2935/2945/2950

YSQC0-009-0000 Smart Cable Kyocera (4-pin) SSR - (TP)

2506ci, 3206ci, 4006ci, 5006ci, 6006ci

YSQC0-008-0000 Smart Cable Kyocera SSR

(requires additional "Key counter wire" between Smart Cable and device main board)

Smart Blocking Cables for Hardware Terminals

required for copy control

YSQC0-008-0000
Smart Cable Kyocera SSR

YSQC0-009-0000

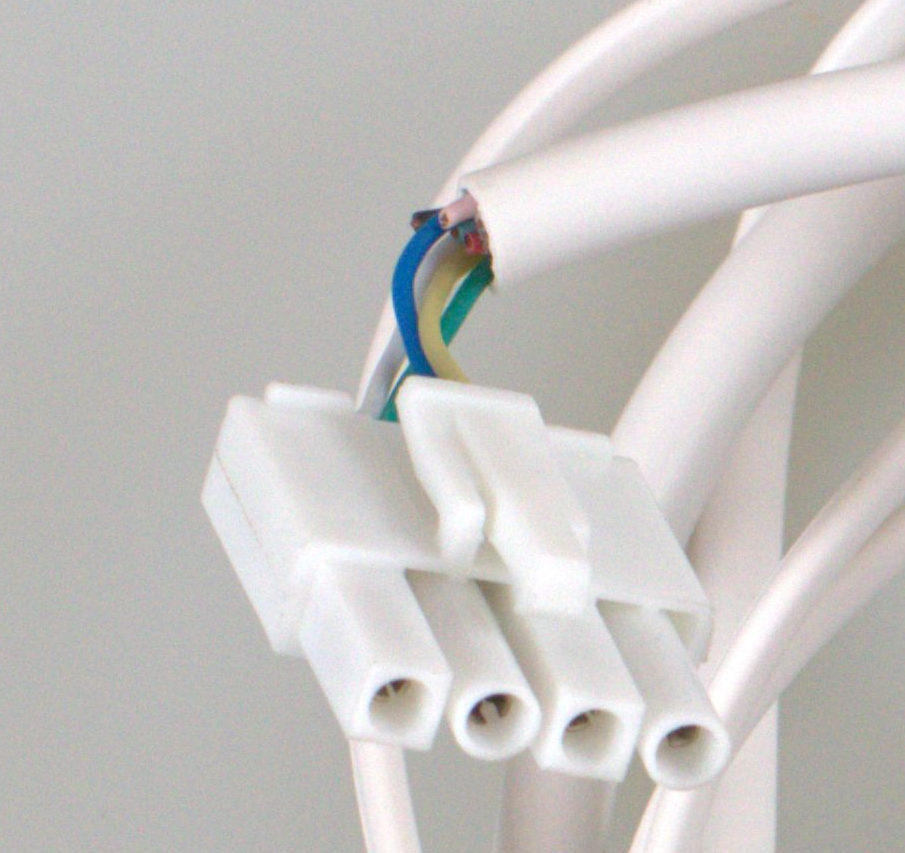

Smart Cable Kyocera (4-pin) SSR - (TP)

YSQC0-010-0000
Smart Cable Kyocera (Type 2) SSR - (TP)
