Compatible blocking cables

• YSQC0-032-0000 Cable Toshiba v2 (Type 1)
• YSQC0-033-0000 Cable Toshiba v2 (Type 2)
• YSQC0-034-0000 Cable Toshiba v2 (Type 3)
• YSQC0-035-0000 Cable Toshiba v2 (Type 4)
• YSQC0-036-0000 Cable Toshiba v2 (Type 5)
• YSQC0-037-0000 Cable Toshiba v2 (Type 6)
• YSQC0-042-0000 Cable Toshiba v2 (Type 7)
• YSQC0-022-0000 Cable Toshiba Harness

Setting via device service menu

After entering device service menu, following steps have to be performed:

1. Open registry 202 (type) and set up option 0 up to 3 (0 disabled, 1, 2,3 messages)

Quit registry settings.

Setting via device service menu for e-STUDIO 2505/2505H/2505F

After entering device service menu, following steps have to be performed:

1. Open registry and set (08)9016 to 1 to enable cost recovery mode.
2. Set (08)9017 to 1 (determines what is covered in cost recovery mode).

Quit registry settings.

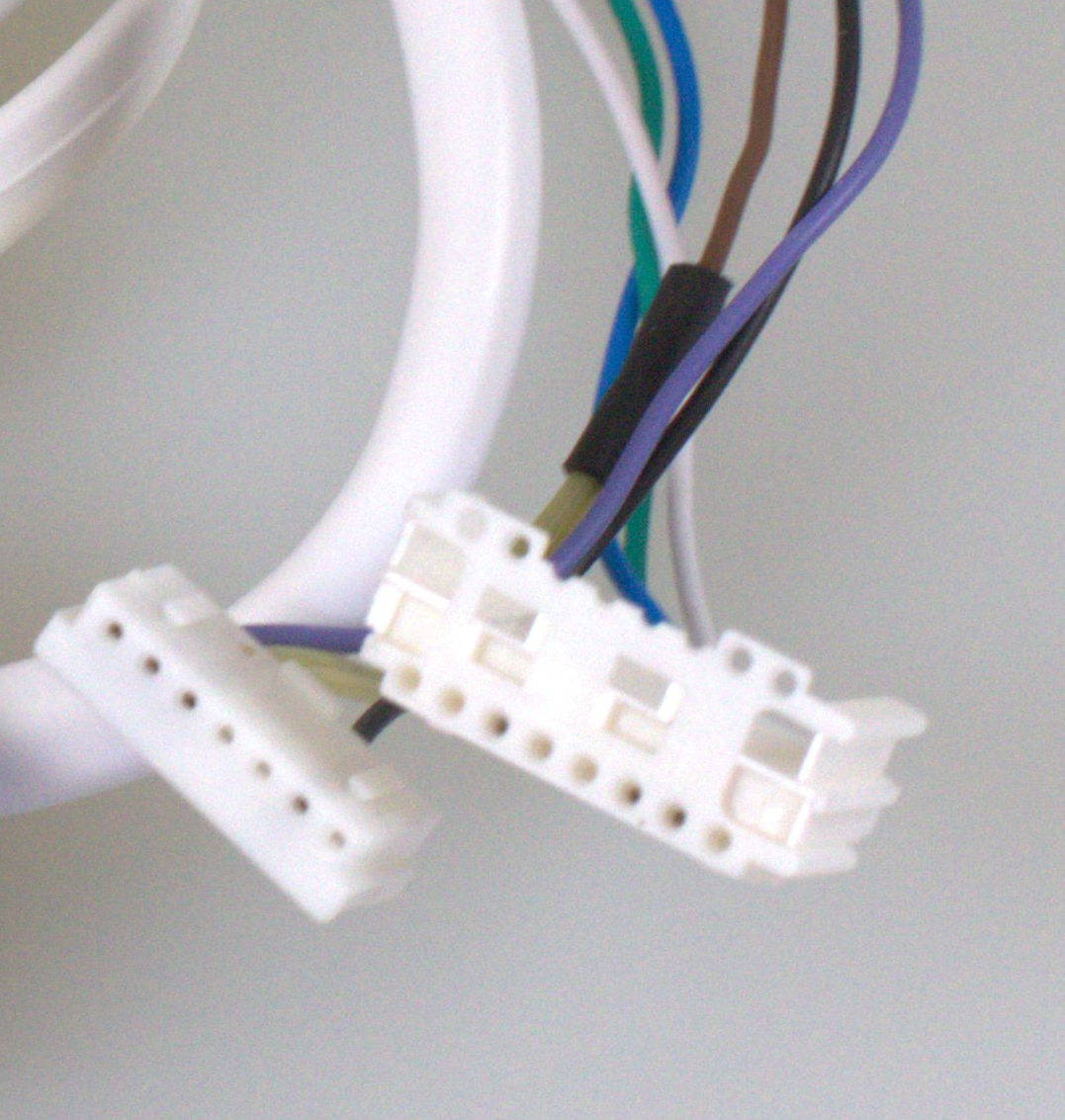

Examples of blocking cable connection:

Toshiba e-STUDIO 2820c

YSQC0-035-0000 Cable Toshiba v2 (Type 4)

Toshiba e-STUDIO 255

YSQC0-042-0000 Cable Toshiba v2 (Type 7)

Toshiba e-STUDIO 2555C/3055C/3555C/4555C/5055C/2555CSE/3055CSE/3555CSE/4555CSE/5055CSE and Toshiba e-STUDIO 477S/527S

YSQC0-056-0000 Cable Toshiba v2 (Type8)
